thumb Steam Jacketed Planetary Cooking Mixer

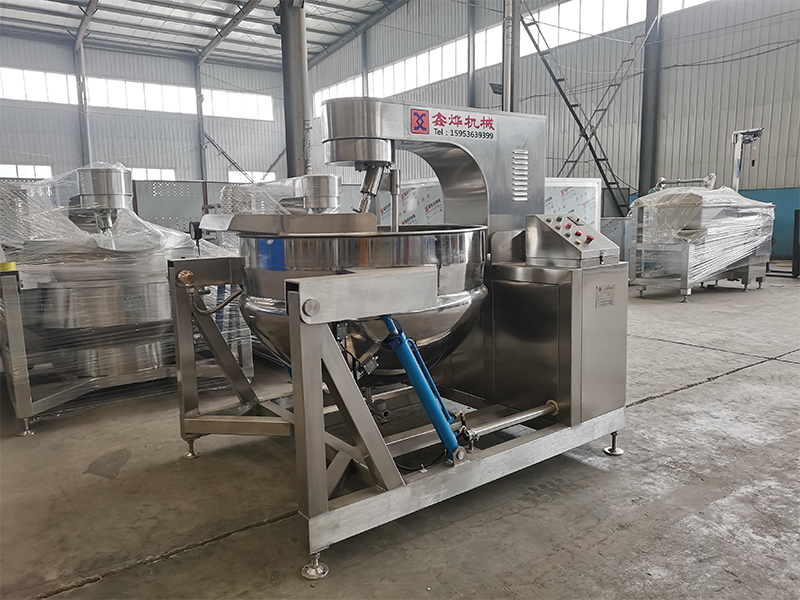

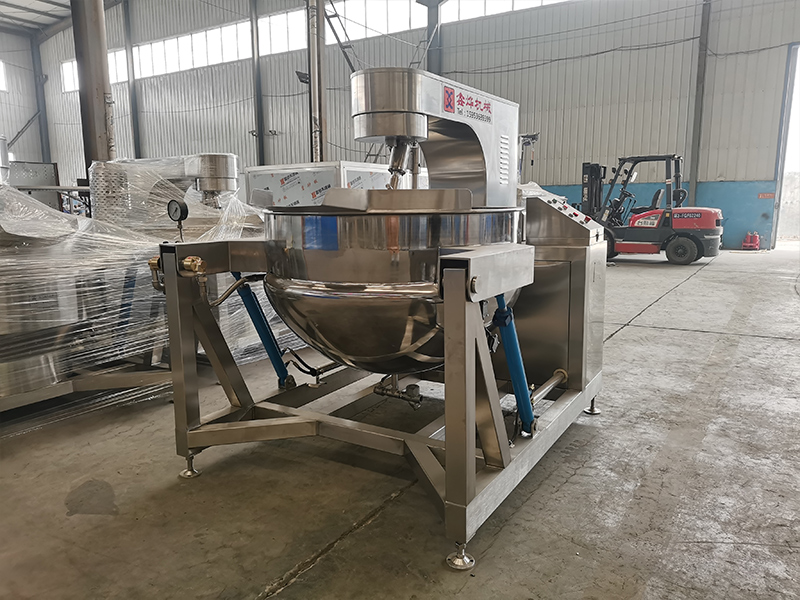

Steam Jacketed Planetary Cooking Mixer

✔ Gentle Steam Heating: Engineered as a premium steam jacketed planetary cooking mixer for highly uniform heat without burning sensitive sugars.
✔ 100% Dead-Angle-Free: Advanced planetary scraping mechanism hugs the bowl perfectly, ideal as a jam and jelly cooking kettle.
✔ Smart Automation: Features fully automatic hydraulic tilting and discharging to drastically reduce manual labor costs.
✔ Heavy-Duty Build: A reliable industrial cooking mixer built entirely with food-grade SUS304 stainless steel.

Request Product Documents

Please fill in your contact information below. Once we receive your details, we will immediately send the requested product documents to your email.

Technical Features
Specifications
Applications
FAQS
Why XINYE

Gentle & Uniform Steam Heating

Designed as a highly efficient jacketed cooking kettle with planetary mixer, it utilizes steam to provide a large-area, extremely uniform heat transfer. This gentle thermal process prevents local hot spots, completely avoiding the caramelization and browning of high-sugar ingredients.

Industrial-Grade Reliability

Built exclusively from premium food-grade SUS304 stainless steel and equipped with robust electronics from globally recognized brands. This ensures your industrial cooking mixer delivers uncompromising durability and food safety under continuous, high-pressure steam operations.

360° Planetary Mixing System

The core of this machine is its advanced planetary cooking mixer design. The PTFE scrapers revolve around the kettle while rotating on their own axis, creating an intensive mixing pattern that ensures 100% wall contact. This eliminates blind spots and effectively prevents sticky jams from burning.

Fully Automated Discharging

To maximize factory efficiency, this Steam jacketed planetary cooking mixer features a one-button hydraulic system. It automatically lifts the mixing arm and tilts the massive bowl up to 90 degrees, making discharging fast, safe, and clean while drastically reducing manual labor.

Technical Specifications for Steam Heating Planetary Mixer

Pot Capacity /L	Pot Diameter /mm	Motor Power /kW	Steam Consumption /kg/h	Rotation Speed (rpm)		Agitation Type	Tilting Mechanism	Heating Method
Pot Capacity /L	Pot Diameter /mm	Motor Power /kW	Steam Consumption /kg/h	Revolution	Rotation	Agitation Type	Tilting Mechanism	Heating Method
100L	￠800	1.5+1.5	40	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Steam Heating
200L	￠900	1.5+1.5	50	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Steam Heating
300L	￠1000	1.5+1.5	60	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Steam Heating
400L	￠1100	1.5+2.2	70	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Steam Heating
500L	￠1200	1.5+4	80	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Steam Heating

What Can Our Steam Heating Mixer Produce?

Sweet Pastes & Fruits

Acts perfectly as a jam and jelly cooking kettle. Highly suitable for heat-sensitive sweets like Marmalade, Bean jam, Custard cream, and Peanut cream.

Savory Condiments & Sauces

The robust industrial cooking mixer easily blends heavy-duty recipes like Soups, Roux, Stews, and high-volume meat or vegetable fillings without sticking.

Specialty Dishes & Catering

Gentle and uniform steam heating makes it ideal for delicate Cream croquettes and traditional Asian dishes like Tsukudani and Kinpira.

Frequently Asked Questions

1. What are the main benefits of steam heating?

A: A Steam jacketed planetary cooking mixer provides the most gentle and uniform heat distribution compared to gas or electric. It eliminates sharp temperature spikes, making it the absolute best choice for heat-sensitive, high-sugar foods like fruit jams and jellies.

2. Will thick fruit pastes burn at the bottom?

A: No. The planetary cooking mixer mechanism ensures the PTFE scrapers fully rotate and revolve across the entire kettle surface, perfectly scraping the bottom and sides to prevent any sugar caramelization.

3. Can it be equipped with a cooling function?

A: Yes, absolutely. Because it is a jacketed cooking kettle with planetary mixer, you can introduce cold water into the jacket after cooking to rapidly cool down your jam, preserving its vibrant color and fresh taste.

4. Do you support equipment customization?

A: Yes, our engineers can customize the machine based on your local factory steam pressure, layout, and capacity needs.

5. Is it easy to clean after daily operations?

A: Very easy. The entire industrial cooking mixer is made of SUS304 stainless steel. The tilting function makes it easy to rinse out, and the control panel is waterproof designed for safe factory washdowns.
