Industrial Induction Heating Planetary Cooking Mixer

Your location:Home Products Planetary Cooking Mixers Induction Heating Planetary Cooking Mixer

thumb Induction Heating Planetary Cooking Mixer

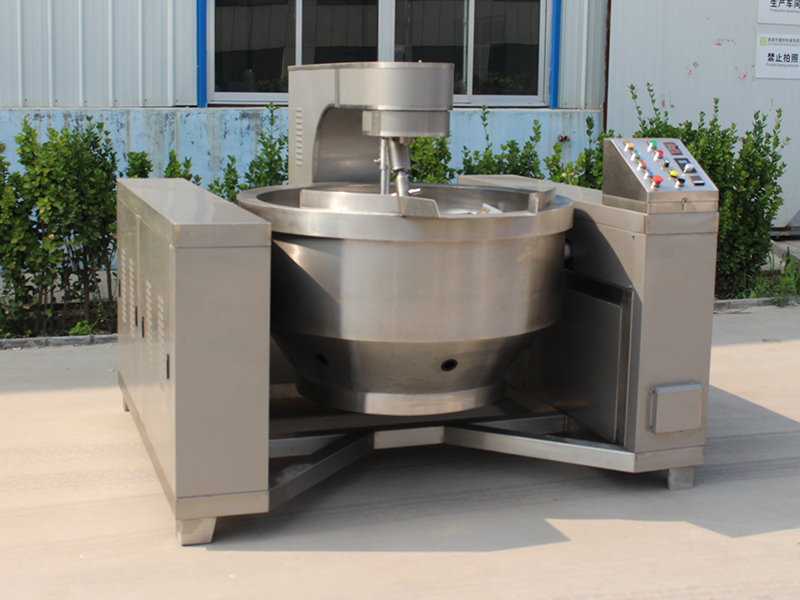

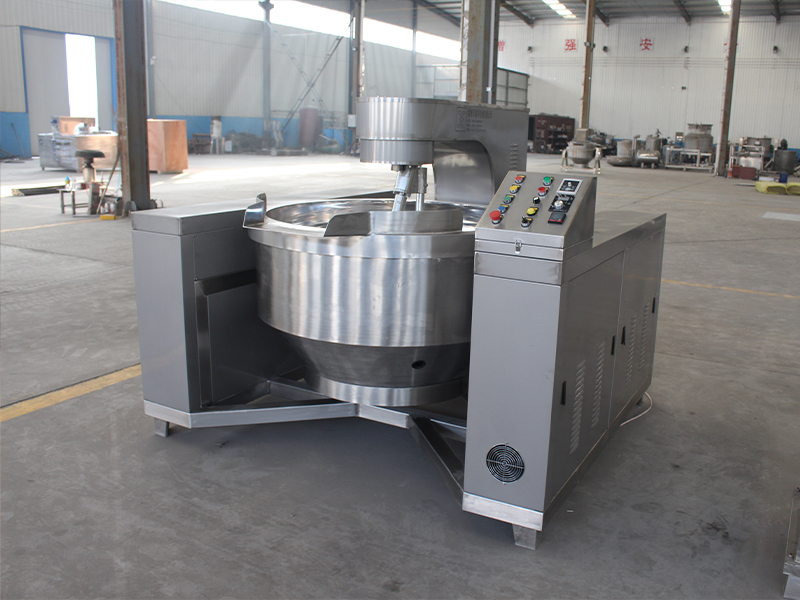

Induction Heating Planetary Cooking Mixer

✔ Instant & Smokeless Heating: Powered by an advanced industrial induction cooking kettle system for rapid, eco-friendly, and highly precise thermal control.
✔ 100% Dead-Angle-Free: The true planetary cooking mixer design ensures PTFE scrapers perfectly hug the bowl, completely preventing burn-on.
✔ Smart Automation: Features fully automatic hydraulic tilting and discharging, drastically reducing manual labor costs.
✔ Heavy-Duty Build: A reliable industrial cooking mixer built with premium SUS304 stainless steel for continuous high-volume production.

Request Product Documents

Please fill in your contact information below. Once we receive your details, we will immediately send the requested product documents to your email.

Technical Features
Specifications
Applications
FAQS
Why XINYE

High-Efficiency Induction Heating

Designed as a state-of-the-art Induction heating planetary cooking mixer, it utilizes electromagnetic induction to heat the kettle directly. This provides instant, extremely precise temperature control while maintaining a completely smoke-free and eco-friendly central kitchen environment.

Industrial-Grade Build & Reliability

Built from premium food-grade SUS304 stainless steel and equipped with robust electronics from globally recognized brands. This ensures your industrial cooking mixer delivers uncompromising durability and food safety under continuous daily operation.

360° Planetary Mixing System

The core of this machine is its advanced planetary cooking mixerdesign. The scrapers revolve around the kettle while rotating on their own axis, creating an intensive mixing pattern that ensures 100% wall contact. This eliminates blind spots and effectively prevents sticky materials from burning.

Fully Automated Hydraulic Discharging

To maximize efficiency, this industrial induction cooking kettle features a one-button hydraulic system. It automatically lifts the mixing arm and tilts the massive bowl up to 90 degrees, making discharging fast, safe, and clean.

Technical Specifications for Electromagnetic Heating Mixer

Pot Capacity /L	Pot Diameter /mm	Motor Power /kW	Rotation Speed (rpm)		Agitation Type	Tilting Mechanism	Heating Method
Pot Capacity /L	Pot Diameter /mm	Motor Power /kW	Revolution	Rotation	Agitation Type	Tilting Mechanism	Heating Method
100L	￠800	1.5+1.5	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Electromagnetic Heating
200L	￠900	1.5+1.5	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Electromagnetic Heating
300L	￠1000	1.5+1.5	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Electromagnetic Heating
400L	￠1100	1.5+2.2	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Electromagnetic Heating
500L	￠1200	1.5+4	6.7-33	14-69.3	Planetary / Bottom-Scraping	Automatic / Hydraulic	Electromagnetic Heating

What Can Our Induction Planetary Mixer Produce?

Sweet Pastes & Sweets

Achieve uniform caramelization and texture for Bean jam, Jelly, Fruit Jam, Marmalade, Custard cream, and Peanut cream.

Savory Condiments & Sauces

The heavy-duty industrial cooking mixer easily powers through Chili sauce, Soups, Roux, Stews, and high-volume fried vegetable/meat fillings.

Specialty Dishes

Precise temperature control makes it ideal for delicate Cream croquette bases and traditional Japanese delicacies.

Frequently Asked Questions

1. What are the advantages of induction heating over gas?

A: An industrial induction cooking kettle heats up significantly faster, offers highly precise temperature adjustments, and creates a smoke-free, comfortable environment. It can also save up to 30-40% on energy costs compared to traditional gas burners.

2. Will high-viscosity materials burn at the bottom?

A: No. The planetary cooking mixer mechanism ensures the PTFE scrapers fully rotate and revolve across the entire kettle surface, perfectly scraping the bottom and sides to prevent any burn-on.

3. Do you support equipment customization?

A: Yes, our engineers can customize the Induction heating planetary cooking mixer based on your local voltage requirements, factory layout, and specific food recipes.

4. Does it require a lot of manual labor to unload?

A: Not at all. The machine is fully automated. With the push of a button on the control panel, the mixing arm lifts and the kettle tilts hydraulically up to 90 degrees to pour out the ingredients easily.

5. Is it easy to clean after daily operations?

A: Absolutely. The entire industrial cooking mixer is made of SUS304 stainless steel. The tilting function makes it easy to rinse out, and the control panel is waterproof designed for safe washdowns.
