Why Choose XINYE Horizontal Mixers?
We solve the toughest challenges in high-viscosity and heat-sensitive food processing.
Choose Your Heavy-Duty Solution by Application
Whether you need massive torque for sticky pastes or a low-temperature vacuum environment for premium jams, we have the right horizontal mixer for your production line.
High-Viscosity Pastes
Standard Horizontal Mixer
⚙️ Strong Kneading Torque
When vertical mixers stall, our U-shape paddle acts like a mechanical arm, folding and kneading heavy, dough-like pastes effortlessly. Ensures a smooth, lump-free texture without dead spots.
Request Equipment Match
Premium Jams & Purees
Vacuum Horizontal Mixer
❄️ 60°C - 80°C Color Lock
The vacuum system lowers the boiling point, rapidly evaporating moisture at just 60-80°C. This prevents oxidation and caramelization, keeping your fruit jam vibrantly colored and nutritionally intact.
Request Equipment Match
Chunky Meat Fillings
Standard Horizontal Mixer
🥩 100% Particle Integrity
High-speed choppers destroy meat texture, turning it into mush. Our slow-speed radial arms fold the meat gently, retaining distinct meat chunks and vegetable cubes for a premium bite.
Request Equipment Match| TECHNICAL SPECIFICATIONS | |||||
| Model No. | XYHZ-Z300 | XYHZ-Z500 | XYHZ-Z600 | XYHZ-Z800 | XYHZ-Z1000 |
| Volume | 300L | 500L | 600L | 800L | 1000L |
| Total Power | Mixing Motor: 2.2 kW | Mixing Motor: 4 kW | Mixing Motor: 4 kW | Mixing Motor: 4 kW | Mixing Motor: 5.5 kW |
| Lid Opening Motor: 0.55 kW | Lid Opening Motor: 0.55 kW | Lid Opening Motor: 0.55 kW | Lid Opening Motor: 0.55 kW | Lid Opening Motor: 0.55 kW | |
| Vacuum Lid: 1.1 kW | Vacuum Lid: 1.1 kW | Vacuum Lid: 1.1 kW | Vacuum Lid: 1.1 kW | Vacuum Lid: 1.1 kW | |
| Vacuum Pump: 4 kW | Vacuum Pump: 4 kW | Vacuum Pump: 4 kW | Vacuum Pump: 4 kW | Vacuum Pump: 4 kW | |
| Mixing Speed | 8–25 rpm | 8–25 rpm | 8–25 rpm | 8–25 rpm | 8–25 rpm |
| Steam Designed Pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Steam Consumption Initial/Average)(kg/h) | 220/150 | 310/210 | 340/240 | 410/280 | 530/370 |
| Functions | Mixing / Heating / Vacuum | Mixing / Heating / Vacuum | Mixing / Heating / Vacuum | Mixing / Heating / Vacuum | Mixing / Heating / Vacuum |
| Overall Dimensions (mm) | 2550 × 850 × 1300 | 2680 × 900 × 1380 | 2720 × 950 × 1450 | 2870 × 970 × 1550 | 3000*1100*1600 |
| Load Capacity(kg) | 80~160 | 100~270 | 120~320 | 150~450 | 200~580 |
Select Your Heavy-Duty Horizontal Mixer
Maximize your production efficiency. Select the Standard Horizontal Mixer for powerful kneading of dense pastes, or upgrade to the Vacuum Horizontal Mixer to prevent oxidation and caramelization in heat-sensitive recipes.
Horizontal Cooking Mixer for High Viscosity Food Processing
Vacuum Horizontal Cooking Mixer for Jam Processing

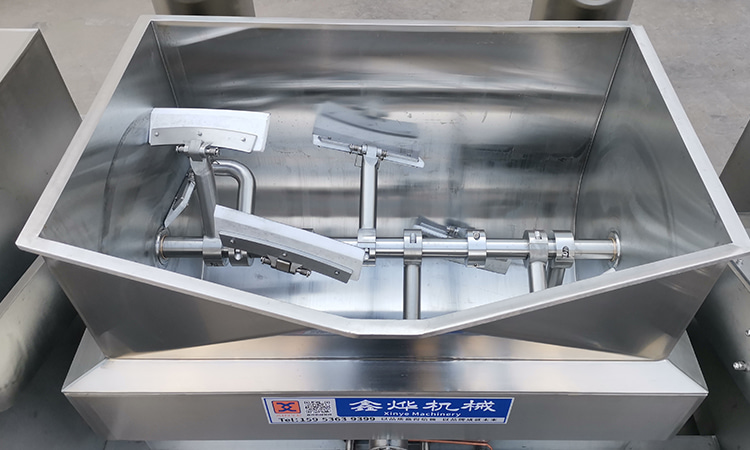

Engineering the Ultimate Heavy-Duty Mixer
At XINYE, we don’t just build kettles; we engineer high-torque mechanical systems and precise vacuum environments to solve the food industry's toughest mixing challenges.
- High-Torque U-Shape Agitation
Built for materials that stall standard mixers. Our industrial gearbox and U-shape paddle deliver massive torque to effortlessly knead ultra-heavy pastes and meat fillings with zero dead spots.
- Precision Vacuum & Low-Temp Thermodynamics
Boiling heat-sensitive ingredients at over 100°C destroys natural colors and flavors.
Ready to Handle the Heaviest Mixes?
Tell us about your recipe, and our engineering team will configure the exact horizontal platform (Standard or Vacuum) for your production line.
Get Custom Configuration & QuoteTrusted by Industry Leaders
