✔ Precise Steam Heating up to 120°C: Indirect steam jacketed heating delivers uniform, low-temperature processing without scorching, preserving product color, aroma and texture.
✔ Zero-Dead-Zone Planetary Agitation: Food-grade PTFE scrapers revolve and self-rotate to sweep the entire kettle surface, preventing burn-on and caking of high-viscosity products.
✔ Certified Pressure-Vessel Build: Sanitary SUS304 / SUS316L stainless steel with Ra ≤ 0.4 μm polish, fully CE / ASME / HACCP compliant for global food plants.
✔ Fully Automated Discharging: Hydraulic 90° tilting plus PLC recipe programs cut labor cost and repeat batch time, temperature and steam curves precisely.
This industrial steam kettle with agitator uses an enveloping indirect steam jacket (0.2–0.4 MPa) to stabilize batch temperature between 85°C and 120°C. Starch gelatinization, paste cooking, dairy handling and fruit puree reduction all proceed without burnt deposits or thermal degradation.

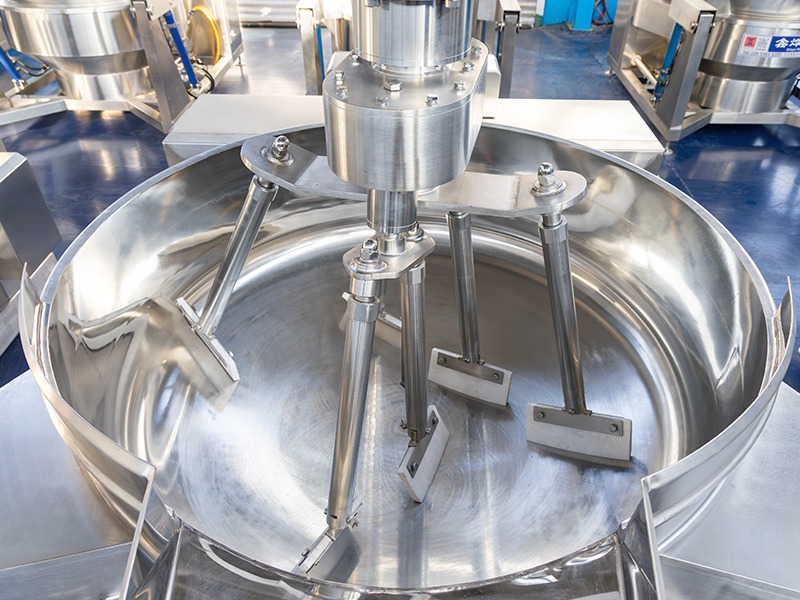

The agitator combines orbital revolution with individual axis rotation. Heat-resistant food-grade PTFE scrapers fit the spherical kettle contour under self-compensating spring tension, continuously clearing the inner wall to prevent high-viscosity caking and promote rapid heat penetration.
Manufactured from heavy-gauge sanitary stainless steel with precision polish to Ra ≤ 0.4 μm. The overhead drive eliminates bottom shaft seals inside the material zone, removing bacterial breeding points in compliance with global HACCP and FDA guidelines, backed by hydrostatic and weld inspection documents.
A high-torque hydraulic mechanism tilts the kettle up to 90 degrees for rapid discharge into 200L buggies or hoppers. The integrated PLC touchscreen stores multi-stage cooking programs covering batch time, agitation speed, steam valve opening and temperature curves with repeatable precision.
| Parameter | Standard Capacity (100L – 500L) | Heavy-Duty Industrial (600L – 1,200L+) |
|---|---|---|
| Gross Vessel Capacity | 100L, 200L, 300L, 400L, 500L | 600L, 700L, 800L, 1,000L, 1,200L+ (Customizable) |
| Heating Method | Indirect Steam (Boiler Supply) | Indirect Steam (Boiler Supply) |
| Jacket Working Pressure | 0.2 – 0.4 MPa (Max Test: 0.6 MPa) | 0.2 – 0.4 MPa (Max Test: 0.6 MPa) |
| Operating Temperature | Ambient to 120°C (Precise Steam Regulation) | Ambient to 120°C (Precise Steam Regulation) |
| Agitator Style | 3-Claw Planetary Bottom-Sweep Scrapers | Multi-Claw Planetary / Heavy-Duty Horizontal Agitator |
| Scraper Material | Food-Grade PTFE (Teflon), Heat-Resistant to 260°C | Food-Grade PTFE (Teflon), Heat-Resistant to 260°C |
| Agitation Speed | 0 – 36 RPM (Stepless Inverter Control) | 0 – 45 RPM (High-Torque K-Series Gear Reduction) |
| Drive Power Rating | 1.5 – 4.0 kW | 5.5 – 11.0 kW |
| Discharge Mechanism | Hydraulic Tilting (Up to 90°) / Bottom Pneumatic Valve | Automated High-Position Hydraulic Tilting / Bottom Valve |
| Contact Material | Certified Food-Grade SUS304 / Optional SUS316L | Certified Food-Grade SUS304 / SUS316L |
| Vessel Wall Thickness | Inner: 4.0 – 6.0 mm / Jacket: 4.0 – 5.0 mm | Inner: 6.0 – 8.0 mm / Jacket: 5.0 – 6.0 mm |
| Compliance & Standards | CE Machinery Directive, ASME Pressure Code, HACCP | CE Machinery Directive, ASME Pressure Code, HACCP |

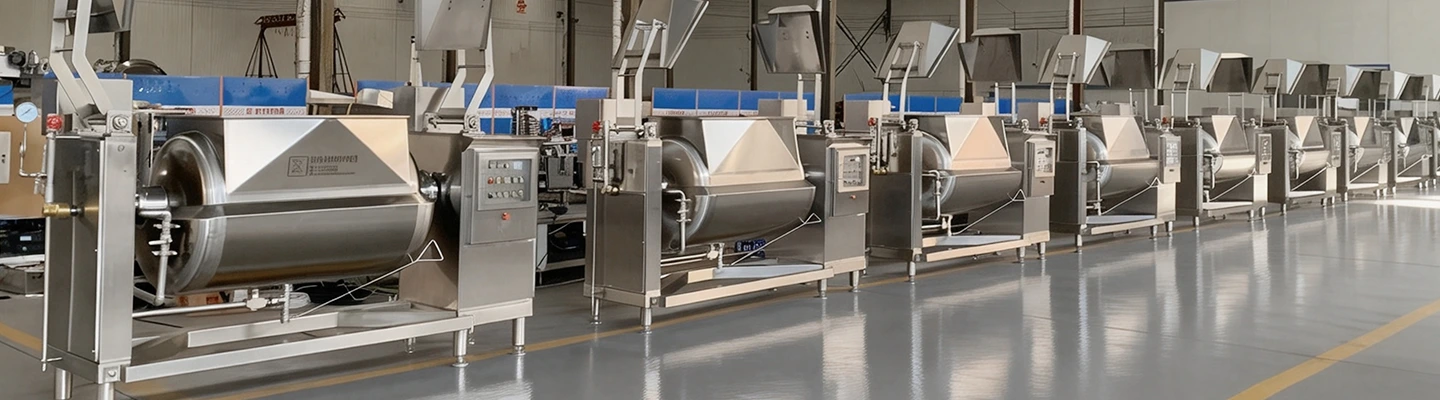

In-house R&D and manufacturing, industrial-grade equipment built for real production challenges.
Genuine Siemens/Schneider parts and SEW/K-Series gear reducers, full SUS304 stainless steel, ensuring zero compromises.
Tailored to your steam supply, capacity, and production process. No one-size-fits-all.
CE/ASME/HACCP certified pressure vessels, backed by 24/7 global technical support and after-sales service.
At XINYE Machinery, we deliver targeted, measurable value across every level of your organization's decision-making and operational hierarchy.
Complete engineering dossiers: P&ID schematics, 2D/3D CAD integration drawings and pressure vessel calculation sheets for seamless plant integration.
Certified material traceability: 3.1 material test certificates (MTC) verifying genuine SUS304/SUS316L, alongside documented hydrostatic pressure test logs.
Process tailoring: agitator blade geometry, scraper positioning and motor gear ratios customized to your product rheology — from free-flowing broth to ultra-high-viscosity bakery paste.
Factory-direct pricing that cuts capital expenditure by 25%–35% compared with European brands.
Milestone-based delivery schedules with transparent production tracking and factory acceptance testing (FAT) before dispatch.
Full regulatory documentation: factory-audited CE declarations, pressure vessel certifications and electrical schematics for smooth customs clearance and local plant licensing.
A single automated steam kettle mixer replaces 3–5 manual cooking operators and cuts batch cooking cycle times by up to 20%.
Zero batch-failure guarantee: precision thermal control and automated scraping eliminate scorching, slashing raw material waste and preserving formulation consistency.
Engineered operating lifecycle exceeding 10–15 years in rigorous multi-shift factory environments.
OEM/ODM partner support: unbranded or private-label configurations, protected territory agreements and competitive dealer margins.
Marketing collateral: high-resolution functional videos, unbranded engineering datasheets and technical application guides to win commercial bids.
24/7 rapid-response after-sales: fast-track replacement component logistics and modular wear-part kits for high end-user satisfaction.
Standardized global components: Siemens PLCs, Schneider electrics and SEW/K-Series gear reducers, ensuring spare parts available worldwide.
Robust global logistics: reinforced fumigated seaworthy wooden crates with anti-corrosion barrier packaging against transit moisture damage.
Contingency readiness: safety stock for critical wear parts (Teflon scrapers, sanitary seals, heating solenoid valves) with 48-hour global air dispatch.
